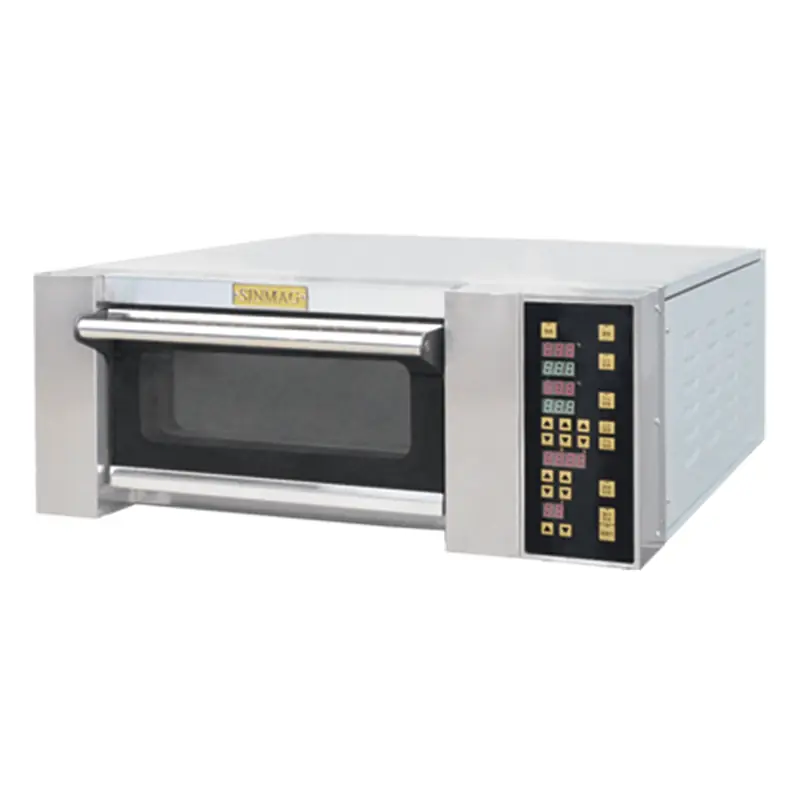

SM2-901C Classical Series
- The ovens are composed of detachable decks,easy to install site.
- Doors with windows open down to access baking chamber.
- Individual steam systems on each deck operate independently.
- Light and timer standard on each deck.
- Easy maintenance baking chamber.
- Stainless steel frame,bottom-placed proofer and top-placed convection oven are options.
- Optional accessories:steam device;exhausting hood;stone plate.
- Easy to use digital controls for temperature,steam time,and top and bottom heat controls for each individual deck.
- SM2-523 with damper key.
- Casters.
Technical Specifications
| Model | SM2-901C | SM-603A | SM2-523 | |
| Number of Decks | 5 | 3 | 3 | |
| Number of Trays(per deck) | 1 | 5 | 3 | 2 |
| Tray Size(mm) | 400X600 | 400X600 | 460X760 | 400X600 |
| Tray Layout | ||||
| External Dimension(mm) | Width | 780 | 2190 | 1320 |
| Depth | 1015 | 1220 | 1090 | |
| Height | 300 | 1860 | 1710 | |
| Baking Chamber Dimension(mm) | Width | 420 | 1720 | 900 |
| Depth | 620 | 845 | 720 | |
| Height | 150 | 250 | 210/230 option | |
| Weight(kg) | 80 | 1260 | 600 | |
| Power per Deck(kw) | 2.8 | 11 | 5.5 | |
| Max Temperature (℃) | 300 | 300 | 300 | |
| Outside Panel (front side) | stainless steel | |||
| Outside Panel(other sides) | aluminum coated steel | |||
| Door-open style | downward&outward |
