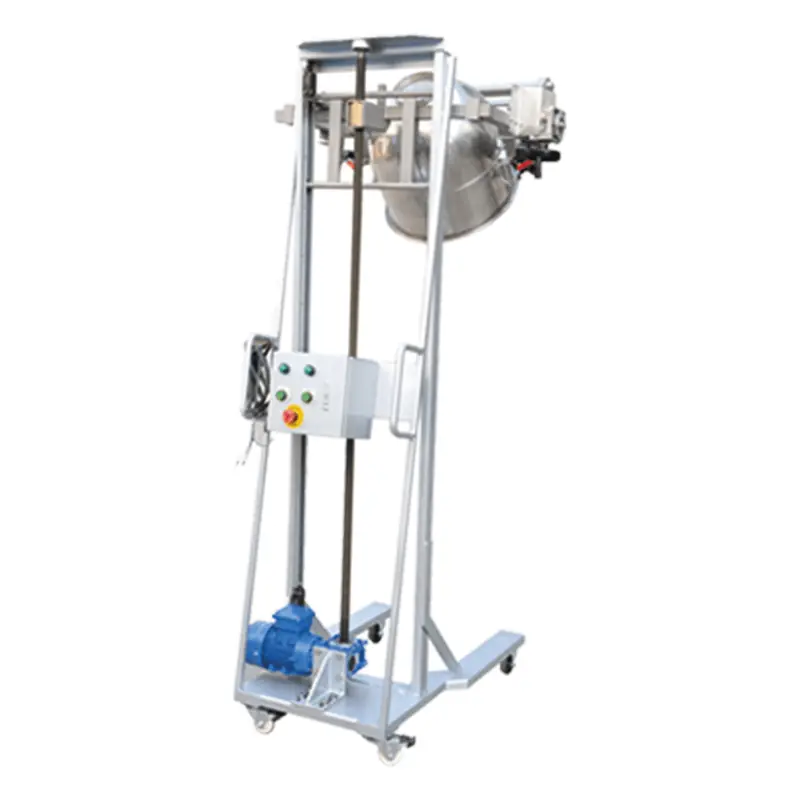

BLCS-80TS Bowl Lifter And Tipper
- Mixing bowl is easily fixed, lifted up and overturns to table or depositor.
- Reduce working strength and working labour.
- Easy to move the machine by castors.
- Elevator are made out of SUS304 with sand blast.
- Safe operation with limit switches.
- The lifting capacity is up to 50kg load(bowl not included). For bowls from 60 to 80 liters,for tipping height up to 1598mm.
- The lift is controlled with push buttons for up and down movement.
Technical Specifications
| Model | BLCS-86 | BLCS-80TS | |
| Suitable Bowl | 40L,60L,80L | 40L ,60L,80L | |
| Power (kw) | 1.5/0.75 (fast/slow) | 0.75 | |
| Bowl Tile Angle(℃) | 120 | 120 | |
| Dimension (mm) | Width | 1300 | 984 |
| Depth | 1350 | 1062 | |
| Height | 2300 | 2158 | |
| Weight (kg) | 390 | 135 | |
| Remark | Stainless steel body | Stainless steel body |
