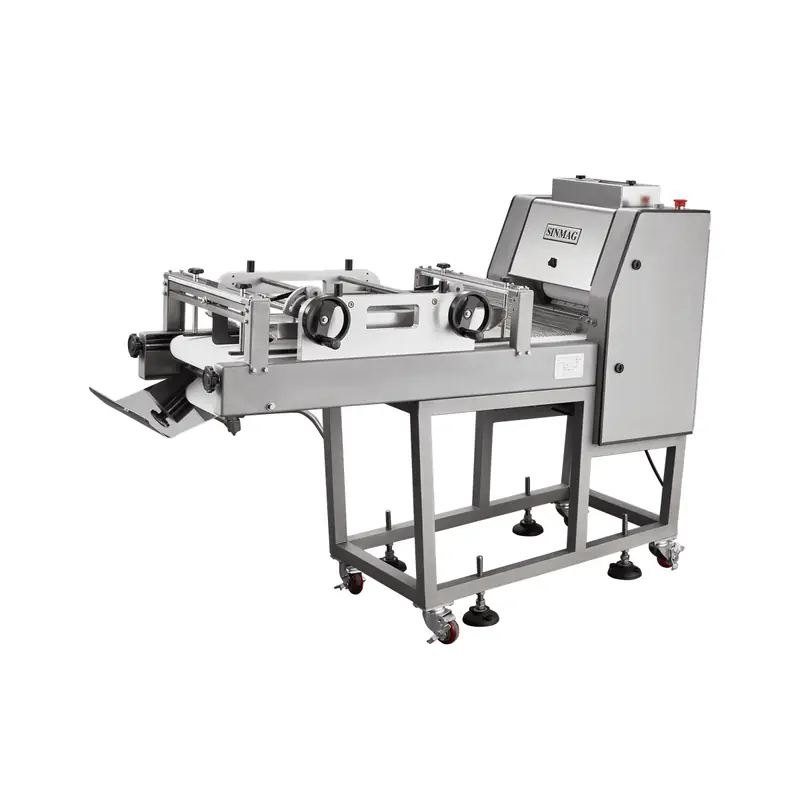

SM-380A Toast Dough Moulder Series
Features：
- Stainless steel material elegant appearance.
- It has scale to adjust the roller gap,it is convenient for user to do the standard operation.
- The scraper of the roller can be detached easily,easy to clean.
- The bottom roller use nylon material,it can avoid the dough sticking.
- Special design of pressing plate with scale to adjust.
- This can remove air very well,achieve optimal moulding effect.
Technical Specifications
| Model | SDM-340B | SDM-340B2 | SM-380A | |
| Capacity(pcs/h) | 3000 | 4500 | 2000 | |
| Dough Weight Range(g) | 30-300 | 30-300 | 30-600 | |
| Working Width(mm) | 350 | 750 | 380 | |
| Dimension (mm) | Width | 1950 | 1950 | 1750 |
| Depth | 770 | 1170 | 610 | |
| Height | 1350 | 1350 | 1150 | |
| Top Roller Gap Adjustment(mm) | 9-14 | 5-9 | 1-15 | |
| Bottom Roller Gap Adjustment(mm) | 1-9 | 1-9 | 1-15 | |
| Motor Power(kw) | 0.75 | 0.75 | 0.75 | |
| Pressure Plate Height(mm) | 10-50 | 10-50 | 1-50 | |
| Weight(kg) | 250 | 325 | 186 |
