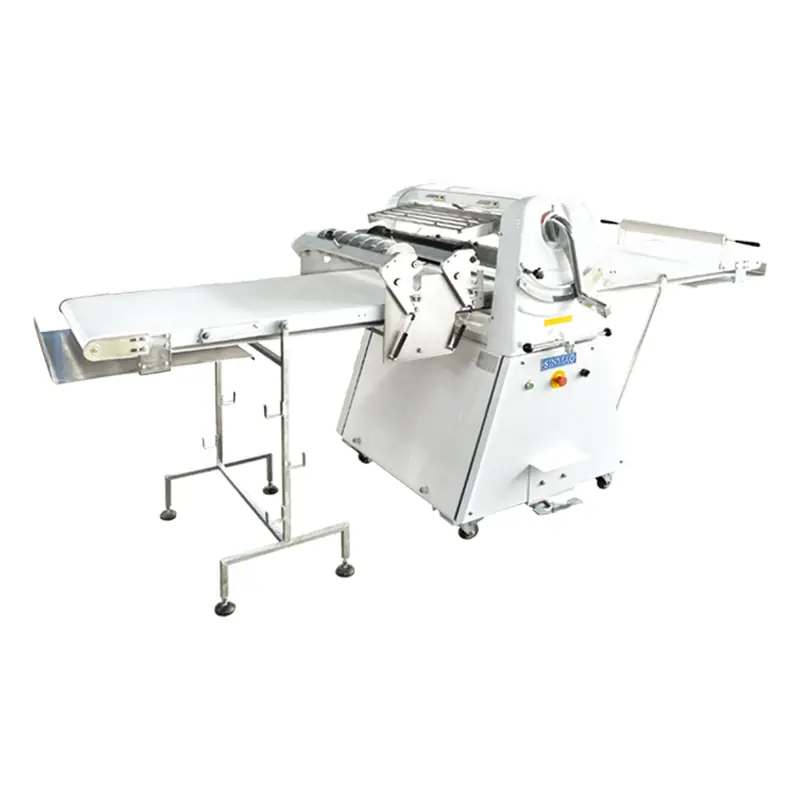

SM-630C European Style Series
- SM-630E/520E,CE approval.
- SM-630C with cutter.
- PVC conveyor belts.
- Belt speed 60 cm/sec.
- Shifting speed by thread commutator and chain wheel wears well.
- Tables can be raised after operation.
- The safety grid can protect us from injury.
- Remove scrapers without tools conveniently for cleaning.
- Use manual lever or footboard switch conveniently for operation.
- Conveyor table could be lifted up for space-saving when not in operation.
- Mounted on castors with locking system,easily movable.
Technical Specifications
| Model | SM-630E | SM-520E | SM-630C |
| Type | Floor Model | Floor Model | Floor Model |
| Working Width(mm) | 585 | 500 | 585 |
| Conveyor Table Length (mm) | 1400 | 1000 | 1400 |
| Gap between Rollers (mm) | 0.3-50 | 0.3-50 | 0.3-50 |
| Machine tables are in working position (W*D*H) | 3540X1040X1270 | 2540X950X1270 | 3540X1040X1270 |
| Machine tables are folded up (W*D*H) | 2020X1040X1950 | 1250X950X1750 | / |
| Power(kw) | 0.75 | 0.75 | 0.75 |
| Weight(kg) | 272 | 234 | 300 |
