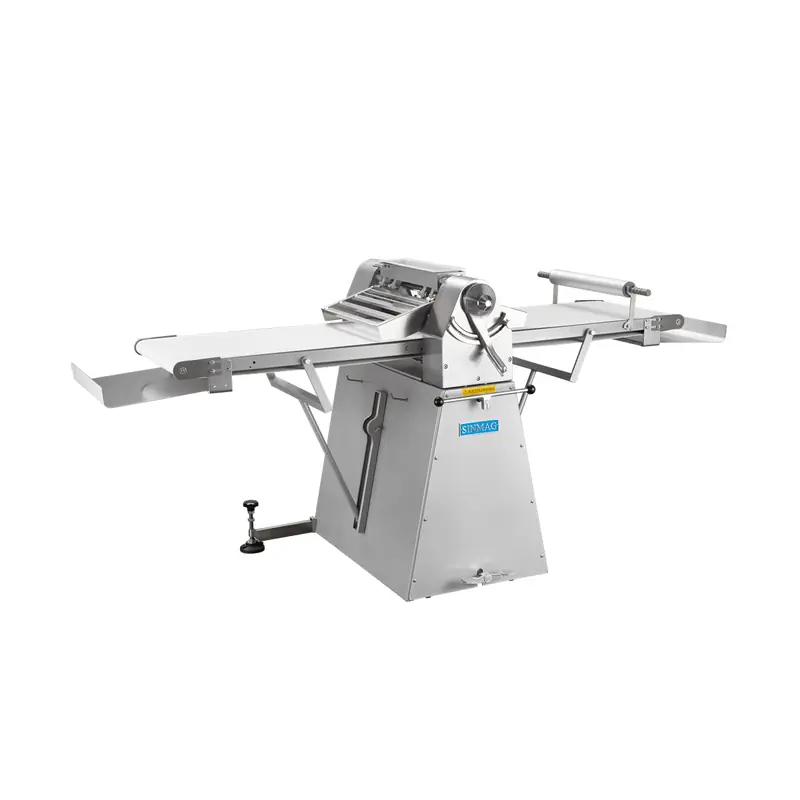

SM-520;SM-630;SM-630S Heavy Duty Series
- Conveyor belts in PVC.
- Catch trays at both ends.
- Shifting speed by clutch commutator and chain wheel wears well.
- Driving by chain wheel avoids conveyer belt slip.
- Gear driving in oil bath enables heavy duty operation.
- Scrapers can be removed without tools conveniently for cleaning.
- The machine can be operated by both manual lever and footboard.
- Conveyor table could be lifted up for space-saving when not in operation.
- SM-620A: with touch screen.
- SM-630S:ETL&ETLS approval.
Technical Specifications
| Model | SM-520 | SM-630 | SM-630S | SM-620A | SM2-650 | |
| Type | Floor Model | Floor Model | Floor Model | Floor Model | Floor Model | |
| Working Width(mm) | 500 | 600 | 600 | 650 | 650 | |
| Conveyor Tabel Length(mm) | 980 | 1400 | 1400 | 1600 | 1400 | |
| Machine tables are in working position(mm) | Width | 2510 | 3500 | 3500 | 3880 | 3270 |
| Depth | 1030 | 1130 | 1130 | 1180 | 1150 | |
| Height | 1170 | 1170 | 1170 | 1330 | 1260 | |
| Machine tables are folded up (mm) | Width | 1300 | 2000 | 2000 | / | 3250 |
| Depth | 1030 | 1130 | 1130 | / | 1143 | |
| Height | 1700 | 1980 | 1980 | / | 2070 | |
| Gap between Rollers(mm) | 0.3-30 | 0.3-30 | 0.3-30 | 0.3-42 | 0.3-50 | |
| Frame Cover | mild steel | mild steel | stainless steel | stainless steel | stainless steel | |
| Power(kw) | 0.75 | 0.75 | 0.75 | 1.85 | 1.1 | |
| Weight(kg) | 220 | 268 | 250 | 430 | 310 |
