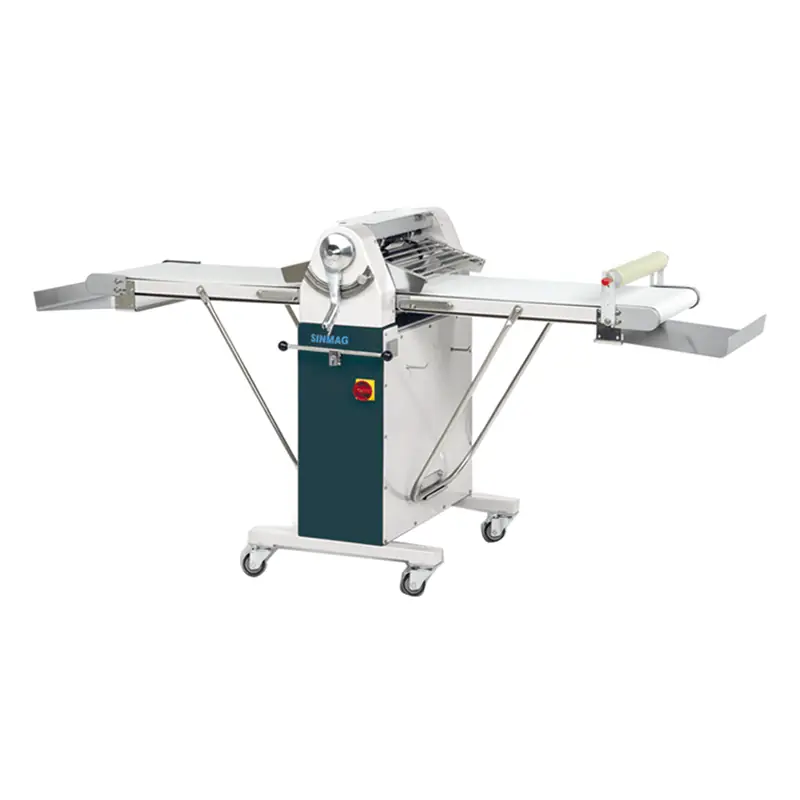

SM-520F Light Duty Series
- For Danish pastry,croissant and puff pastry etc.
- PVC conveyor belts.
- Manual operation.
- SM-520F:with handle.
- SM-520S/SM-520S-BSL:with push button.
- SM-520S/SM-520F with Ratchet wheel commutator system.
- The safety grid can protect us from injury.
- Remove scrapers without tools conveniently for cleaning.
- SM-520F:mounted on castors with locking system,easily movable.
Technical Specifications
| Model | SM-520S | SM-500M | SM-520S-BSL | SM-520F | |
| Type | Table Model | Table Model | Table Model | Floor Model | |
| Working Width(mm) | 500 | 500 | 500 | 500 | |
| Conveyor Table Length(mm) | 670 | / | / | 980 | |
| Gap between Rollers(mm) | 0.3-30 | 0.3-50 | 0.3-30 | 0.3-30 | |
| Machine tables are in working position(mm) | Width | 1500 | 1040 | 1000 | 2500 |
| Depth | 950 | 840 | 940 | 940 | |
| Height | 580 | 500 | 580 | 1180 | |
| Machine tables are folded up (mm) | Width | 850 | 440 | / | 1200 |
| Depth | 950 | 760 | / | 1030 | |
| Height | 670 | 580 | / | 1750 | |
| Power(kw) | 0.55 | / | 0.55 | 0.55 | |
| Weight(kg) | 100 | 60 | 100 | 168 |
