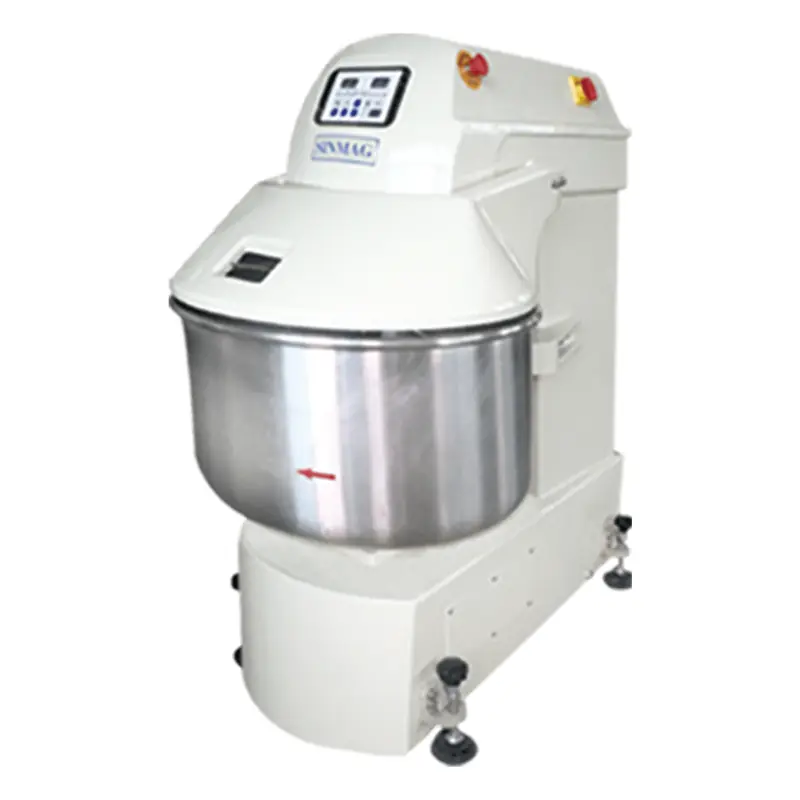

KM-50T;KM-80T;KM-120T Fixed Bowl Series
Features:
- Digital control panel.
- Solid construction.
- KM-25 single-motor driven.
- From KM-50T,two motors.
- Three timers for programming reverse direction and both speeds.
- Short mixing time with excellent kneading result.
- Switch for manual or automatic function.
- With dust cover.
- Mounted on castors,easily movable.
- Stainless steel hook and bowl.
- ABS plastic cover and safety grids cover for choice(KM-25,ABS safety cover only).
Technical Specifications
| Model | KM-25 | KM-50T | KM-80T | KM-120T |
| Capacity(kg) Flour | 12.5 | 25 | 50 | 75 |
| Capacity(kg)Dough | 25 | 50 | 80 | 120 |
| Spiral Power(kw) | 2.2 | 3 | 4.5 | 9 |
| Bowl Power(kw) | / | 0.75 | 0.75 | 0.55 |
| Spiral Speed(rpm) 1st Speed | 140 | 135 | 125 | 110 |
| Spiral Speed(rpm)2nd Speed | 280 | 270 | 250 | 220 |
| Bowl Speed(rpm)1st Speed | 12.8 | 17.8 | 17.2 | 13 |
| Bowl Speed(rpm)2nd Speed | 25.5 | 17.8 | 17.2 | 13 |
| Weight(kg) | 150 | 320 | 390 | 610 |
| Outside Dimension(mm)(W*D*H) | 490X860X1070 | 600X1000X1200 | 720X1210X1350 | 830X1350X1400 |
